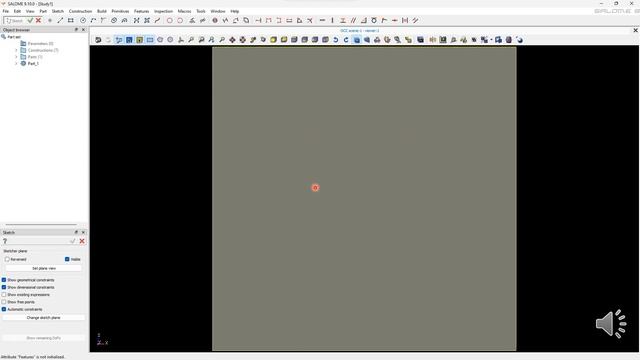

03 Shaper Module Salome Sketch Toolbar

The Sketch Toolbar in Salomes Shaper module offers a comprehensive set of tools for creating and constraining 2D sketches within the 3D modelling environment. Point:Allows you to create a point in the sketch. Line:Draws a straight line connecting two points. Rectangle:creates a rectangular shape defined by two corner points. Circle:Draws a circle with a specified centre and radius. Arc:Creates an arc based on specified parameters like centre start point and end point. Fillet: Adds a fillet rounding the intersection between two lines or segments. Ellipse:Draws an elliptical shape defined by its major and minor axes. Elliptic Arc:Creates an elliptical arc based on specified parameters. B-spline:Generates a B-spline curve with control points. Periodic B-spline: Similar to B-spline but with additional periodicity conditions. Curve Fitting: Fits a curve to a set of points smoothing the overall shape. Split: Divides a curve or line into segments. Trim: Removes portions of curves or lines. Projection: Projects a 3D object onto the sketch plane. Intersection: Finds the intersection points between two sketch entities. Mirror Copy: Creates a mirrored copy of selected sketch entities. Linear Copy: Makes linear copies of selected sketch entities. Angular Copy: Creates angular copies of selected sketch entities. Offset: Adds an offset to selected sketch entities. Distance: Measures the distance between two points. Horizontal Distance: Measures the horizontal distance between two points. Vertical Distance: Measures the vertical distance between two points. Length: Measures the length of a selected sketch entity. Angle: Measures the angle between two lines or entities. Radius: Measures the radius of a circle or arc. Horizontal: Applies horizontal constraints to selected entities. Vertical: Applies vertical constraints to selected entities. Fixed: Fixes the position of a point or entity. Parallel: Constraint selected lines or entities to be parallel. Perpendicular: Constraints selected lines or entities to be perpendicular. Tangent: Enforces a tangent relationship between curves or entities. Coincident: Forces two points or entities to coincide. Middle Point: Creates a point at the midpoint of a line. Equal: Makes selected entities equal in length or size. Collinear: Enforces collinearity between lines or entities. watch the previous videos on shaper module - 01 - 02 Playlist for geometry module ,

#
